NonShrink Grout used to waterproof small voids etc.

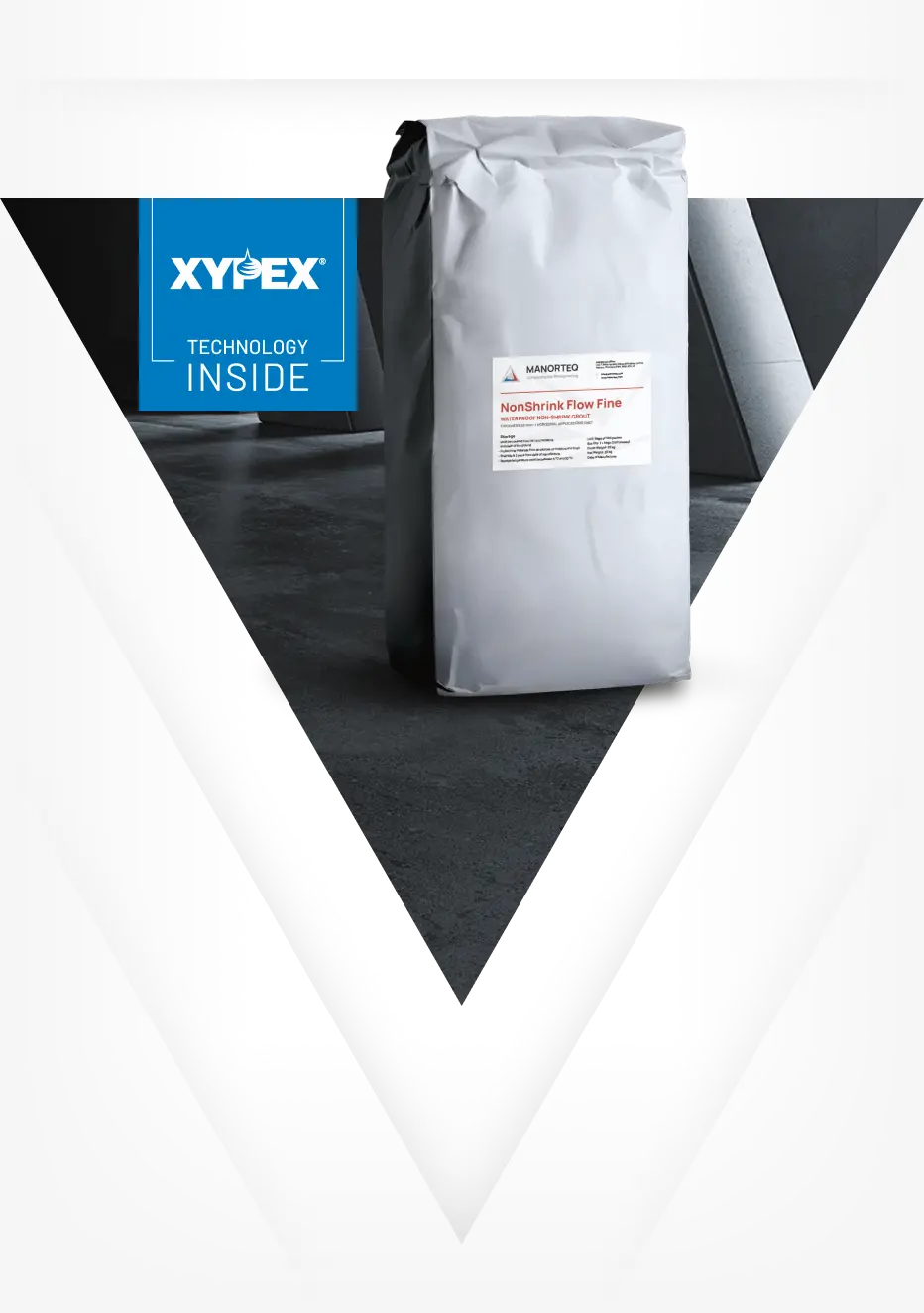

Manorteq NonShrink Flow Fine
NonShrink Flow Fine ensures permanent waterproof fixing of anchoring elements in level concrete.
Manorteq NonShrink Flow Fine is a single-component, high strength, non-shrink, dry mortar mix intended specifically for sealing anchors and creating watertight areas within supported horizontal concrete structures.
NonShrink Flow Fine is suitable for voids from 5mm to 35mm. The product has excellent waterproofing capabilities, provided by the Xypex Technology Inside.
Description
Manorteq NonShrink Flow Fine is a grout that ensures permanent fixing of anchors in concrete. It resists most dynamic stresses and provides protection to anchors.
NonShrink Flow Fine has been developed specifically for small volume, manually applied grouting between 5mm and 35mm in depth.
Holes filled with Manorteq NonShrink Flow Fine are sealed against water and a variety of liquids.
Manorteq NonShrink Flow Fine can also be used for the sealing of joints in precast, vertical and non-supported horizontal concrete structures.
Compressive Strength in accordance with EN 12190:
| Fine | |
|---|---|
| 7 Day | >45 MPa |
| 28 Day | >60 MPa |
Manorteq NonShrink Flow Fine is suitable and recommended to waterproof voids where Xypex Admix C-Series has been used in the original construction of:
- Anchor holes in slabs
- Concrete slabs
- Reservoirs
- Tanks
- Under machinery
Product Certified:
EN 1504-6 – Products and systems for the protection and repair of concrete structures – Anchoring of reinforcing steel bar.
Use
Manorteq NonShrink Flow Fine provides excellent fixing of anchors in concrete constructions.
Manorteq NonShrink Flow Fine has good resistance to most dynamic stresses.
It provides protection to anchors. It is suitable for providing waterproofing to the joints of precast, vertical and non-supported horizontal concrete structures that contain Xypex Admix.
Voids filled with Manorteq NonShrink Flow Fine are sealed against liquids, including most oil-based products.

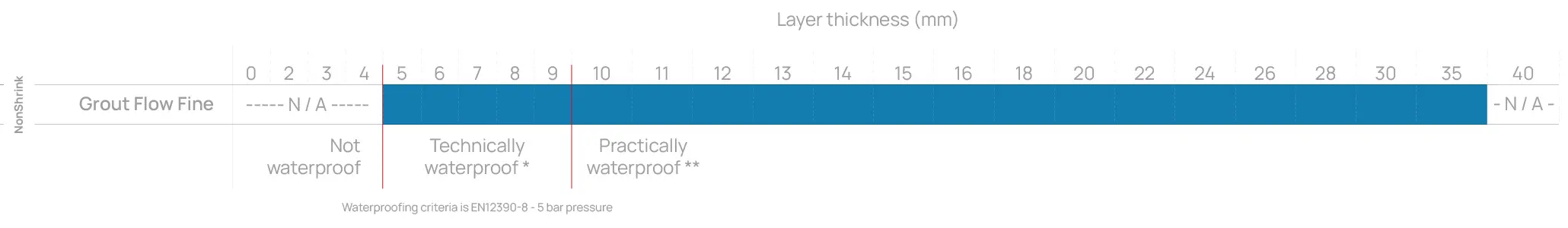

Waterproofing Capability
* Whilst a perfect application at these thicknesses will provide a waterproof layer, there is, however, a higher probability of imperfections in the application which would compromise the integrity of the waterproofing.
** At these thicknesses, Manorteq products will be waterproof when applied in strict accordance with the installation procedures laid out in the Technical Data Sheets.
Installation
Substrate
- Any dust and loose particles shall be removed from the substrate before application. The concrete surface must not be contaminated by substances which can negatively affect adhesion of the mortar to the substrate (oil or other products).
- Before application of the prepared mortar, wetting of the concrete surface should be thorough and repeatedly undertaken for at least 120 minutes.
- The application thickness for Manorteq NonShrink Flow Fine ranges from 5 mm to 35 mm.
Preparation
- Manorteq NonShrink Flow Fine is prepared by mixing a 25 kg bag with 3.15 to 3.65 litres of clean water.
- Optimum quantity of batching water can fluctuate, as is usual with mortars containing a cementing binder.
- Working time of the product is 50 – 60 minutes at 20 °C.
- It is important to note that the anchor holes, joints etc. should be filled in one application without interruption, to ensure the treated areas are continuous.
- The temperature of ambient air shall not be below, nor expect to be, in the following 24 hours, +3°C or be, or expect to be, above +35 °C.
Never apply to frozen substrates.
