High Strength, NonShrink Grout used to waterproof small voids etc.

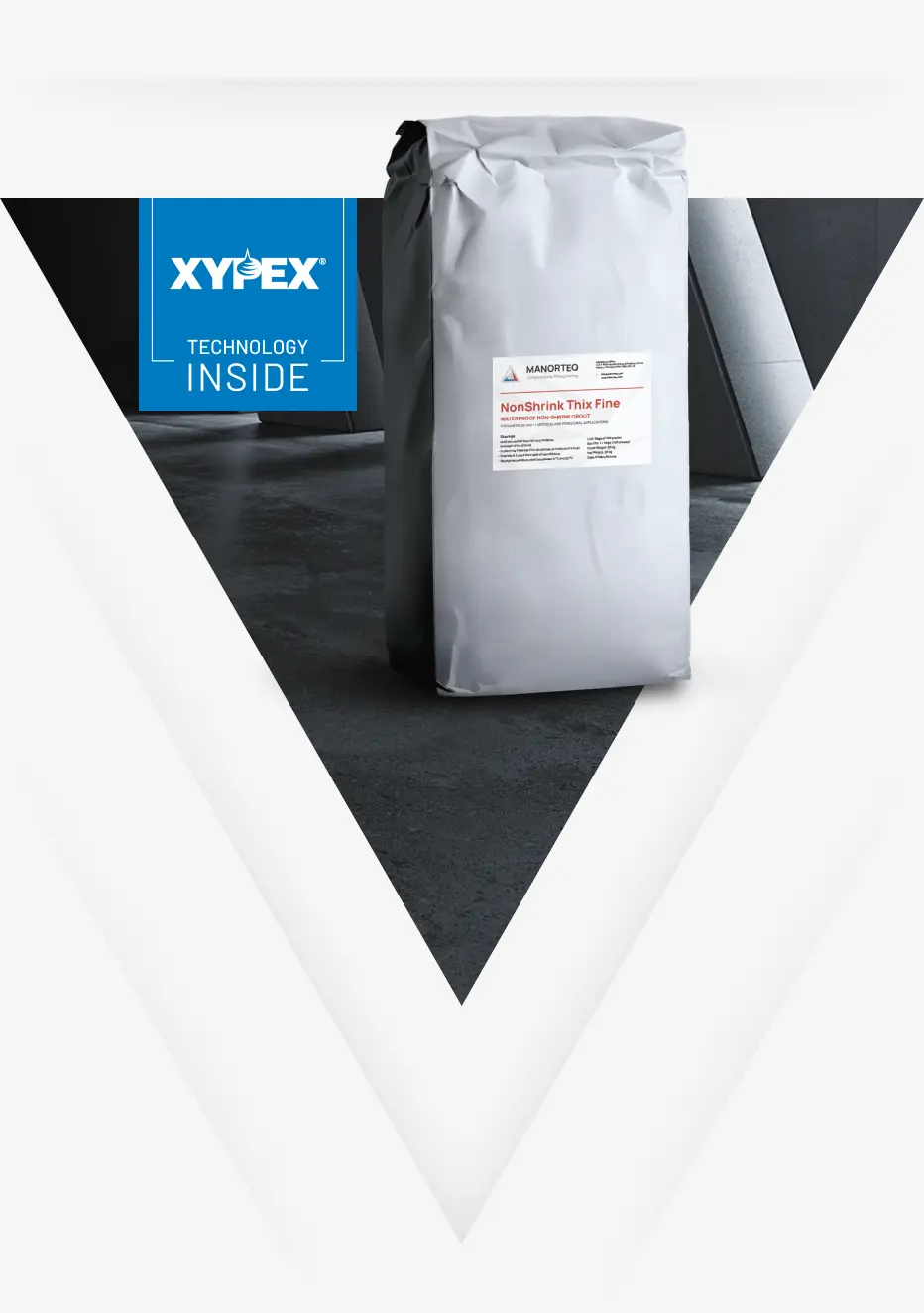

Manorteq NonShrink Thix Fine
Manorteq NonShrink Thix Fine resists most dynamic stresses and provides alkaline protection.
Manorteq NonShrink Thix Fine is a single-component, high strength, non-shrink, dry mortar mix intended specifically for sealing anchors and creating watertight areas within vertical and non-supported horizontal concrete.
NonShrink Thix Fine is for voids from 5mm to 35mm in depth. The product has excellent waterproofing capabilities, provided by the Xypex Technology Inside.
Description
Manorteq NonShrink Thix Fine is a grout that ensures permanent fixing of anchors in concrete. It resists most dynamic stresses and provides protection to anchors.
Manorteq NonShrink Thix Fine has been developed specifically for small volume, manually applied grouting between 5mm and 35mm in depth.
Holes filled with Manorteq NonShrink Thix Fine are sealed against water and a variety of liquids, including oil products.
Manorteq NonShrink Thix Fine can also be used for the sealing of joints in precast, vertical and non-supported horizontal concrete structures.
Compressive Strength in accordance with EN 12190:
| Fine | |
|---|---|
| 7 Day | >40 MPa |
| 28 Day | >50 MPa |
Manorteq NonShrink Thix Fine is suitable and recommended to waterproof voids where Xypex Admix C-Series has been used in the original construction of:
-
Anchor holes
-
Concrete walls
-
Concrete soffits
-
Concrete slabs
-
Reservoirs
-
Concrete tanks
Product Certified:
EN 1504-6 – Products and systems for the protection and repair of concrete structures – Anchoring of reinforcing steel bar.
Use
Manorteq NonShrink Thix Fine provides for the filling of voids to enable the continuation of the waterproofing. It resists most dynamic stresses and provides protection to anchors.
Manorteq NonShrink Thix Fine can also be used for the sealing of joints in precast, vertical and non-supported horizontal concrete structures that contain Xypex Admix.
Voids filled with Manorteq NonShrink Thix Fine are sealed against liquids, including most oil-based products.

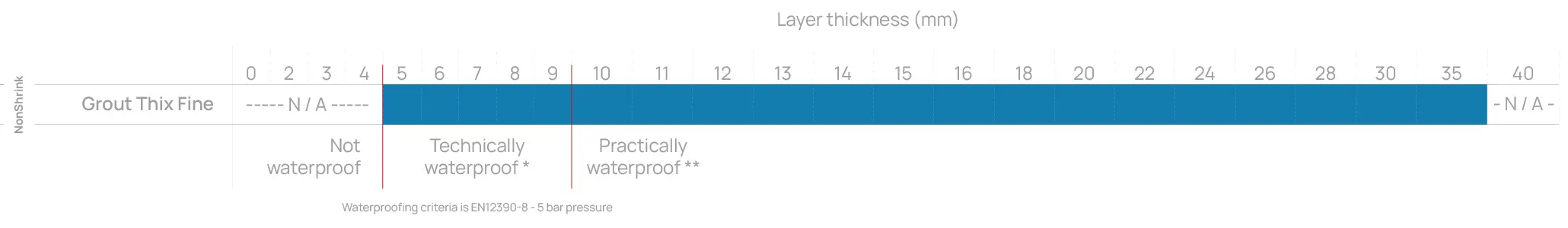

Waterproofing Capability
* Whilst a perfect application at these thicknesses will provide a waterproof layer, there is, however, a higher probability of imperfections in the application which would compromise the integrity of the waterproofing.
** At these thicknesses, Manorteq products will be waterproof when applied in strict accordance with the installation procedures laid out in the Technical Data Sheets.
Installation
Substrate
- Any dust and loose particles shall be removed from the substrate before application. The concrete surface must not be contaminated by substances which can negatively affect adhesion of the mortar to the substrate (e.g. oil).
- Before application of the prepared mortar, wetting of the concrete should be thorough and repeatedly undertaken for at least 120 minutes.
- The application thickness for Manorteq NonShrink Thix Fine is a minimum of 5 mm and a maximum of 35 mm.
Preparation
- To prepare Manorteq NonShrink Thix Fine, mix 3.25 to 3.75 litres of clean water per 25 kg of product.
- Optimum quantity of batching water can fluctuate, as is usual with mortars containing a cementing binder.
- Working time of the product is 50 – 60 minutes at 20 °C.
- It is important to note that the anchor holes, joints etc. should be filled in one application without interruption, to ensure the treated areas are continuous.
- The temperature of ambient air shall not be below, nor expect to be, in the following 24 hours, +3°C or be, or expect to be, above +35 °C.
Never apply to frozen substrates.
