Waterproof Mortar /
Render / Screed System
AquaRend waterproof mortar for use as structural repair mortar, render or screed.
Waterproof mortar products and systems to rehabilitate concrete and masonry structures, either vertically or horizontally (including overhead).
The AquaRend system is suitable and recommended to waterproof and repair concrete, concrete block, brick, or stone structures.
AquaRend Thix Regular
LAYER
10 – 30 mm
APPLICATION
METHOD
WET SPRAYED
INSTALLATION
ORIENTATION
VERTICAL,
HORIZONTAL
AND OVERHEAD
PRODUCT
DESIGNATION
STRUCTURAL (R3)
>25 MPa
WATERPROOF
<50 meters
PERFORMANCE
CHARACTERISTICS
THIXOTROPIC,
CEMENT-BASED
INTENDED USE
WATERPROOFING,
STRUCTURAL REPAIR,
RENNOVATION
AND RENDERING
AquaRend Thix Fine
LAYER
3 – 12 mm
APPLICATION
METHOD
WET SPRAYED
INSTALLATION
ORIENTATION
VERTICAL,
HORIZONTAL
AND OVERHEAD
PRODUCT
DESIGNATION
STRUCTURAL (R3)
>25 MPa
WATERPROOF
<50 meters
PERFORMANCE
CHARACTERISTICS
THIXOTROPIC,
CEMENT-BASED
INTENDED USE
WATERPROOFING,
STRUCTURAL REPAIR,
RENDERING AND
SURFACE FINISHING
AquaRend S-Fine
LAYER
2 – 4 mm
APPLICATION
METHOD
MANUAL
INSTALLATION
ORIENTATION
VERTICAL,
HORIZONTAL
AND OVERHEAD
PRODUCT
DESIGNATION
NON-STRUCTURAL (R2)
>15 MPa
PERFORMANCE
CHARACTERISTICS
FINE-GRAINED,
CEMENT-BASED
INTENDED USE
NON-STRUCTURAL REPAIR, FINE FINISHING, QUICK RETURN TO SERVICE FOR XYPEX REPAIRS

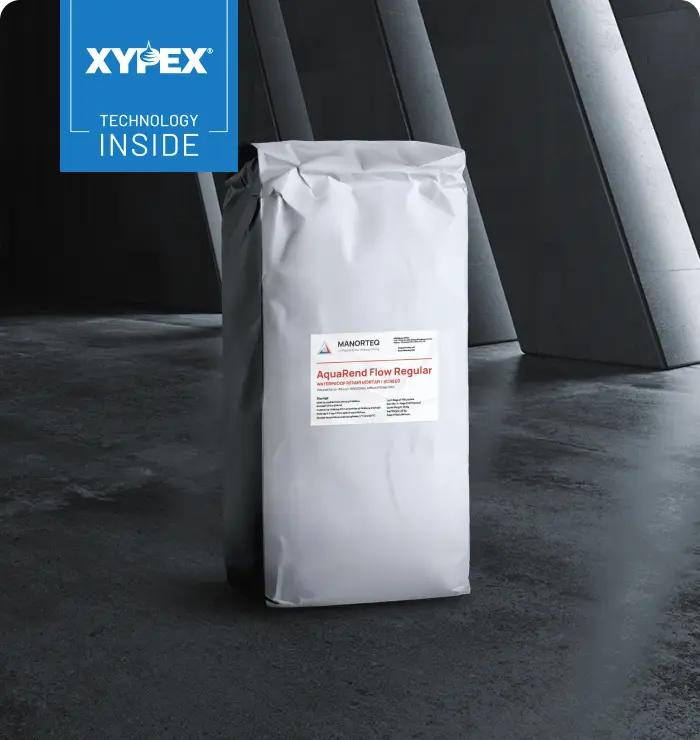

AquaRend Flow Regular
LAYER
10 – 30 mm
APPLICATION
METHOD
POURED
INSTALLATION
ORIENTATION
HORIZONTAL
PRODUCT
DESIGNATION
STRUCTURAL (R3)
>25 MPa
WATERPROOF
<50 meters
PERFORMANCE
CHARACTERISTICS
FLOWABLE,
CEMENT-BASED
INTENDED USE
WATERPROOFING, STRUCTURAL REPAIR FOR HORIZONTAL SURFACES, WATERPROOF SCREED
AquaRend product line
AquaRend mortars are, in general, single-component dry mortar mixtures designed specifically for structural repair* and creating waterproof* layers on vertical or horizontal concrete and masonry substrates.
All Manorteq AquaRend mortars have been developed specifically to create a layer upon a substrate, utilising the Xypex Technology Inside.
The crystallization process within the pore system of the Manorteq AquaRend products creates a waterproof layer which is impermeable to water, organic solvents, oil products etc.
Depending on the specific requirements of the project, the Manorteq AquaRend range can either be applied as a single application, or capped with a finer layer of mortar. The application depth of AquaRend mortars allow a thickness range of 2 mm up to 30 mm.
AquaRend products can provide a waterproof layer, which is tested regularly in accordance with the standard EN 12390-8 up to 50 metres hydrostatic head (limit of test).
Manorteq AquaRend mortars are fully compatible with the Xypex product range and can be used in conjunction with all Xypex applications.
If required, paints or other coatings can be directly applied onto the Manorteq AquaRend repaired area. Any application of paints or coatings must be of a breathable nature. If in doubt, please refer to your Manorteq representative.
All Manorteq AquaRend waterproof mortars are in accordance with EN 1504-3 and are classified as R3 mortar*.
The Manorteq AquaRend system is able to repair and waterproof concrete, concrete block, brick, or stone structures in:
- Basements
- Swimming pools
- Tunnels
- Tanks
- Reservoirs
- Sewage treatment plants
- Concrete water pipes
- Concrete sewer pipes
- Manholes
- Vaults
- Marine structures
- Bridge structures
* With the exception of AquaRend S-Fine
General comparison
| AquaRend Thix Regular | AquaRend Flow Regular | AquaRend Thix Fine |
AquaRend S-Fine | |
| Agg. Size | ≤ 4 mm | ≤ 4 mm | ≤ 1 mm | n/a |
| Min. Thickness | 10 mm | 10 mm | 3 mm* | 2 mm* |
| Max. Thickness | 30 mm | 30 mm | 12 mm | 4 mm* |
| Pressure | 50 m in accordance with EN 12390-8 | n/a | ||
| Compressive Strength | ≥ 35 MPa | ≥ 30 MPa | ≥ 30 MPa | ≥ 20 MPa |
| Adhesive Bond | ≥ 2.0 MPa | ≥ 2.0 MPa | ≥ 2.0 MPa | ≥ 1.0 MPa |
| Use | Vertical or Horizontal inc. overhead | Horizontal | Vertical or Horizontal inc. overhead | Vertical or Horizontal inc. overhead |
* Any cementitious waterproofing barrier is dependent on the thickness of the application. AquaRend mortars are high performance cementitious products and technically are waterproof at 5 mm. However, consideration should be given to application imperfections and, as such, it should be we recommend a practical waterproofing thickness of 10 mm (please see chart below).

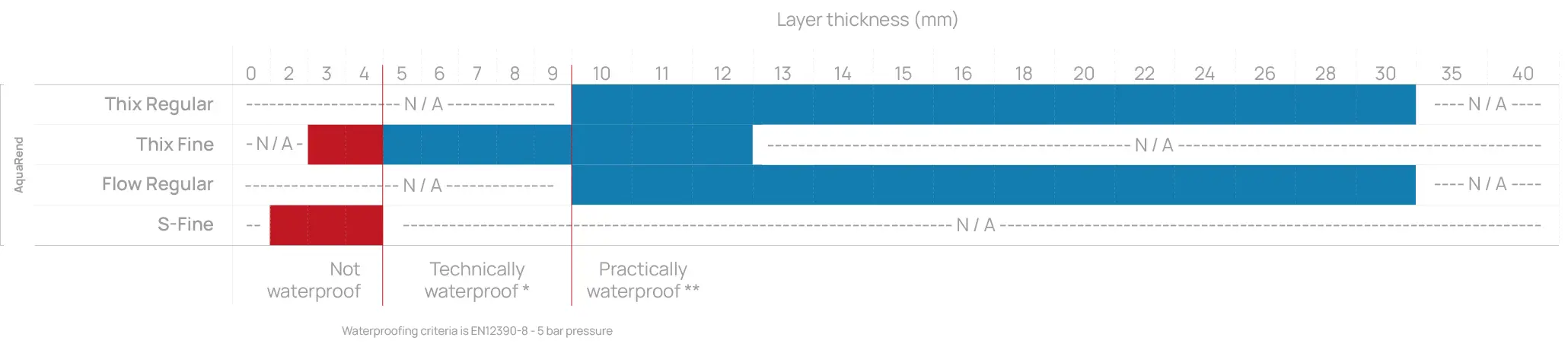

Waterproofing Capability
* Whilst a perfect application at these thicknesses will provide a waterproof layer, there is, however, a higher probability of imperfections in the application which would compromise the integrity of the waterproofing.
** At these thicknesses, Manorteq products will be waterproof when applied in strict accordance with the installation procedures laid out in the Technical Data Sheets.
